hello. This is RS Korea. We worked on installing the FIX800 H2 0-1000pm model and a status board for measuring hydrogen in the laboratory of a pharmaceutical company in Cheongju, North Chungcheong Province.
These are the construction details for this work. Required materials: Approximately 40~50m including power and communication lines. Special features: - Ceiling piping and measuring instruments are installed through electrical outlets, and the electronic display board is a structure in the office. - Due to the nature of hydrogen being lighter than air, it is installed in a higher place than the device expected to generate hydrogen. - A ladder is required due to working at heights.

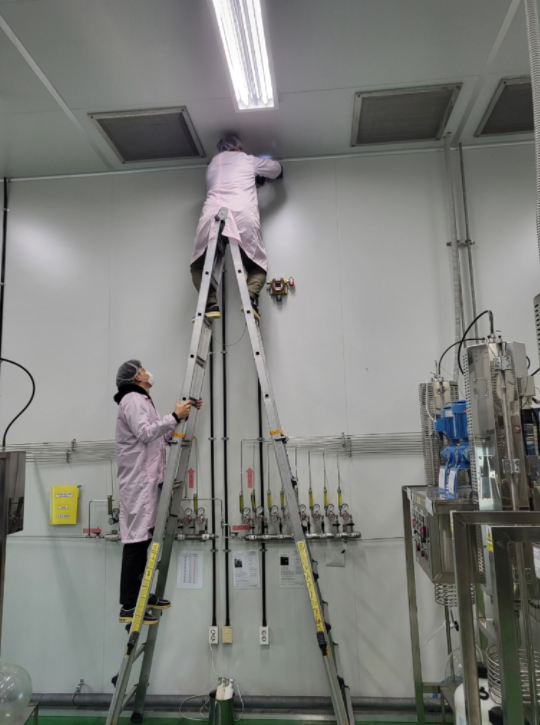

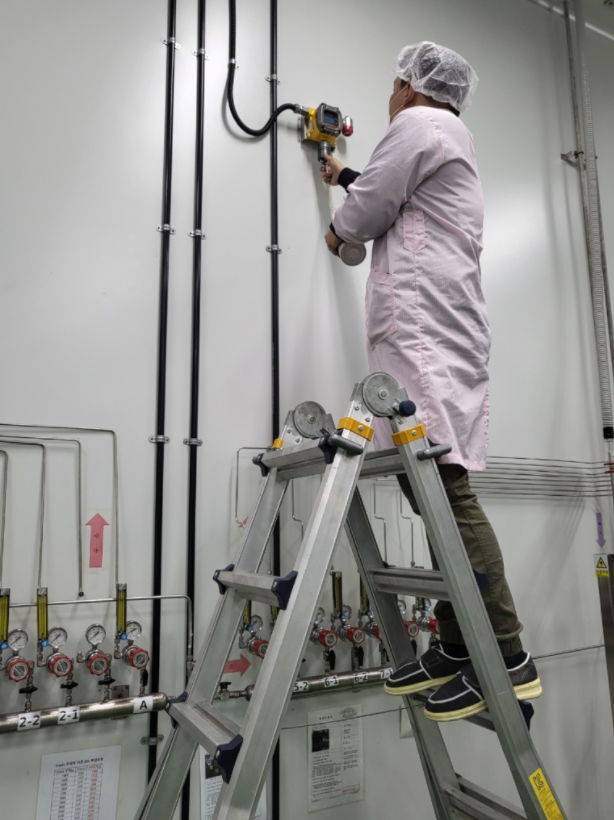

It's like a frog pose. After installing the measuring instrument at the point agreed upon with the excavation user, we proceed with drilling work to fly the cable using an electric tool. The more well-constructed the building is, the more difficult it is to drill.

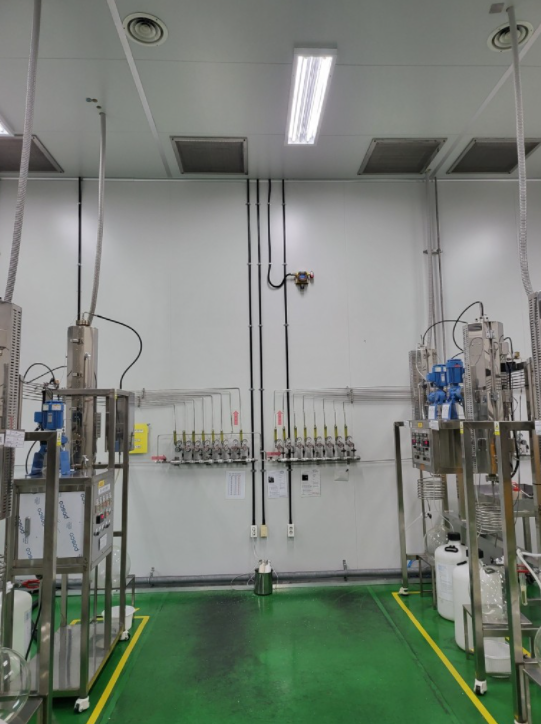

In order to reduce the feeling of difference with the existing PVC pipe, we used waterproof flexible of the same thickness and color. It was disappointing that it looked a little obvious in real life, but the photo is more believable.

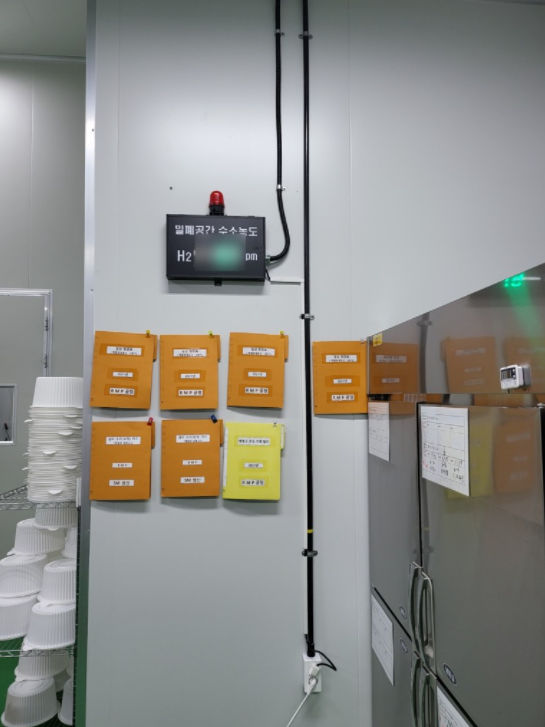

An electronic display board with warning lights was installed in the office space outside the lab. The measuring instrument FIX800 and communication + power lines are connected by wire. The 220V power supply to the electronic display board is well hidden with a thin, white duct. Some of you may have discovered that the power cord was pulled down after reading this article. Inside the site, the process was in progress and XX ppm was coming out. Although it is not at a dangerous level, please understand that we mosaic it to protect your information.
After completion of construction and cleanup, we will invite the person in charge to demonstrate the measuring equipment and provide operating training. The prepared calibration gas was injected into the device to check alarm operation and electronic display interconnection. This can be said to be a safe service that you can receive if a measuring instrument handling company even performs the installation.

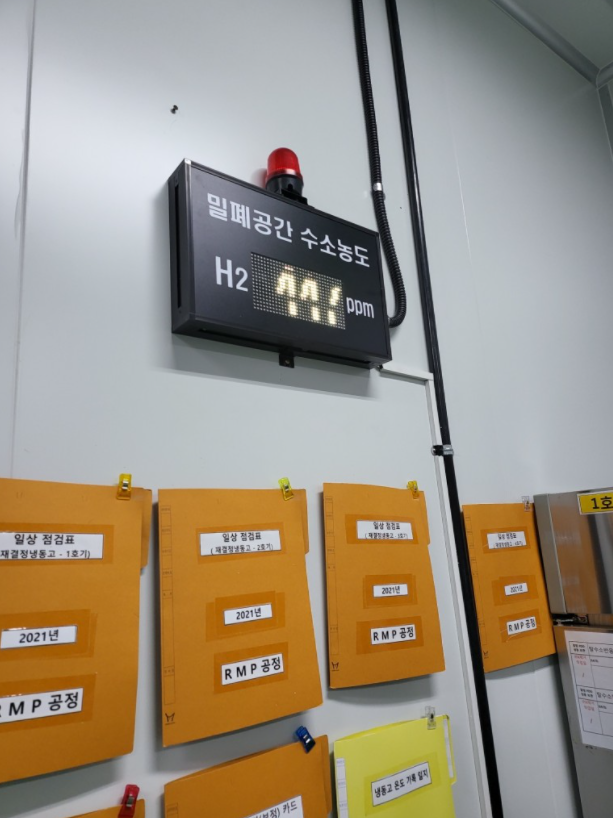

After injection of calibration gas, it works well on the external electronic display board. You can easily check numerical changes during work. Summary below: 1. In Cheongju 2. FIX800 H23. Installed.4. For medicine, go to the pharmacist. For measuring device installation, go to the measuring device company.
