Hello, this is RS Korea ZOE. Today's blog post is about the additional installation of Wandi's fixed gas meter.
This company was the site where installation work was carried out in the first half of 2021. As a company that conducts research and production in clean rooms, it has been introduced several times on the RS Korea blog as carrying out inspections and sensor replacements. Installation inspection and test run https://blog.naver.com/rs-korea1/222448269093On-site inspection and repair https://blog.naver.com/rs-korea1/222775756604https://blog.naver.com/rs-korea1/222829750153

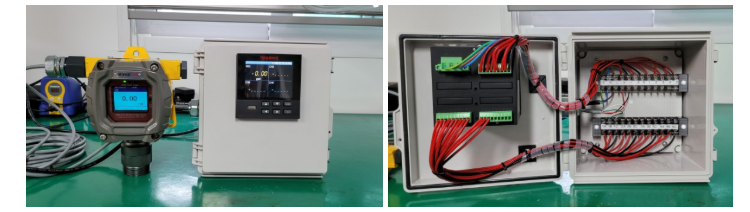

As in the last post, a fixed gas measuring device from Wandi, a brand specializing in gas measurement, and a data logger from Shumia, a brand specializing in water quality and data loggers, were installed and in use. As a new clean room was built, there was a request to install additional products with the same specifications as before [FIX800 VOC / preprocessor (custom-made) / R9600 data logger], so I visited. Although not all 'clean rooms' are the same conditions, the clean rooms of the companies in question are. The differential pressure in each room, including fine dust/temperature/humidity, was managed to be within regulations. ■ Purpose of installation The purpose of installing the FIX800 VOC 10ppm product in a clean room is as follows. Chemical cleaning is carried out periodically to clean the production process. If the residual gas of the chemical [VOC series] remains in the room, it can not only affect the safety of workers but also stain materials and produce defective products. Therefore, we requested installation of a VOC meter to manage the measured values. https://blog.naver.com/rs-korea1/222489166121※ VOC, a volatile organic compound. Its definition and types, The risks are posted on our blog, so please check through the URL above. As a matter of fact, wearing dustproof clothing was the most difficult during the first on-site meeting and installation inspection. When I visited for the second installation, I wore the dustproof clothing as if it were my own clothes and was able to easily identify the installation points, so I was very happy that the process went smoothly, unlike the last visit. I will mention...■ There is one room that requires additional installation product measurements, and real-time data management and alarms are required. Considering this, we decided to configure #FIX800 VOC 10ppm, an installation type VOC meter, and #R9600 from Shumia, a logger for data management.● FIX800 guide video https://youtu.be/2qCmopTkHps● R9600 guide video https://youtu.be/fNz-ReE_P7w■ Installation equipment

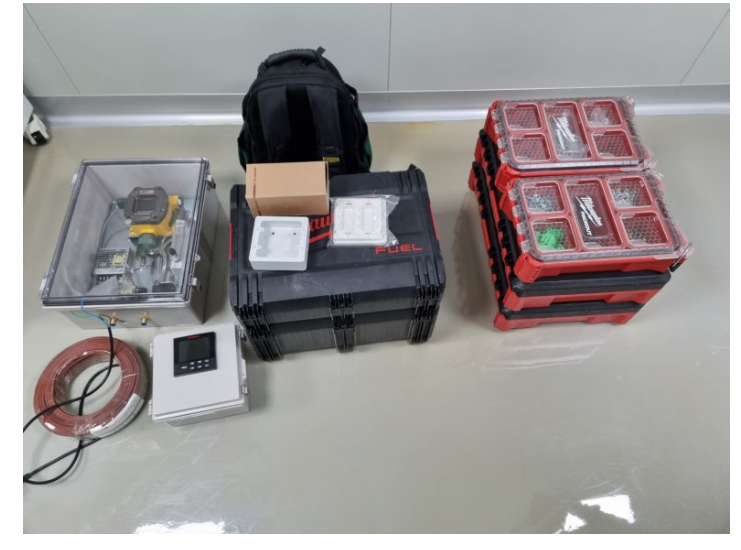

Today's installation equipment. There are various tools, Refco tool bag, SUPMEA R9600, and preprocessor [customizing] products.
I changed into dustproof clothing for installation. ■ Installation point

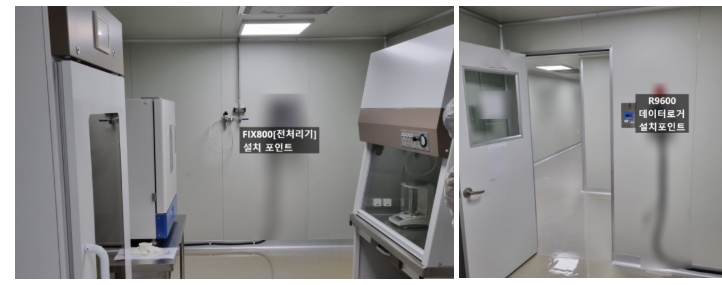

It looks like the installation has been completed, but it's not... (please tell me) Today's installation points are two locations. At the request of the site manager, the VOC is measured to be the highest inside the clean room, so it will be installed inside, and the R9600 [data logger] will be installed at the entrance. Power supply was done using the 220V outlet at the entrance data logger installation point, so power could be supplied without much electrical work. ■ Installation

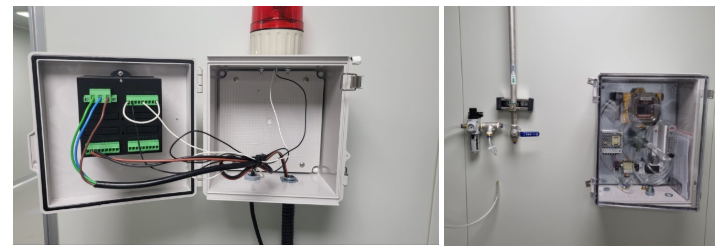

Fix the product according to the installation point.

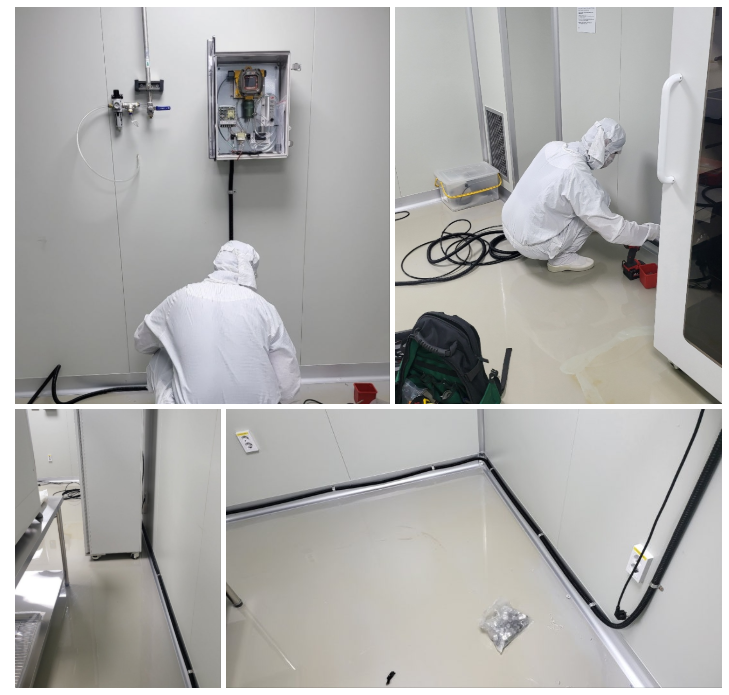

Flexible [GW waterproof corrugated pipe] was used to organize the wires. The wires are neatly organized.

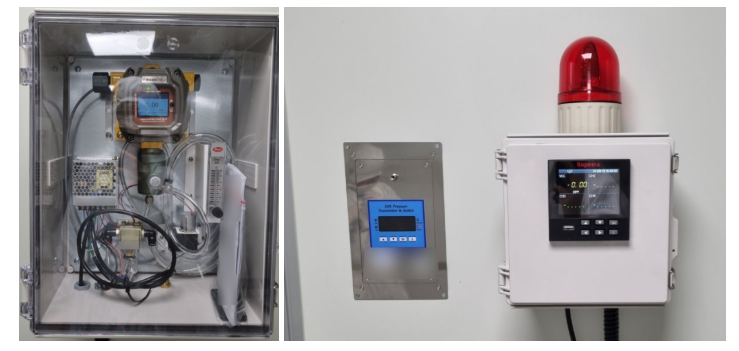

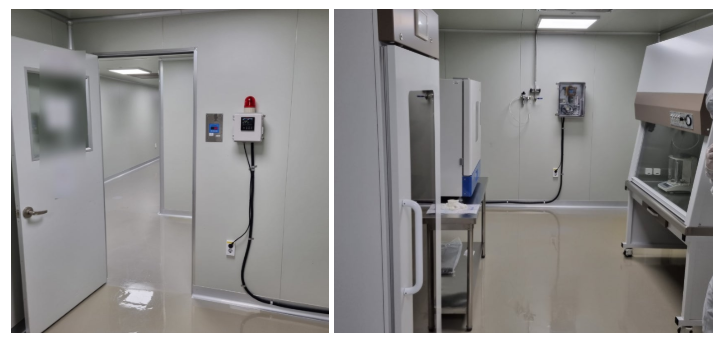

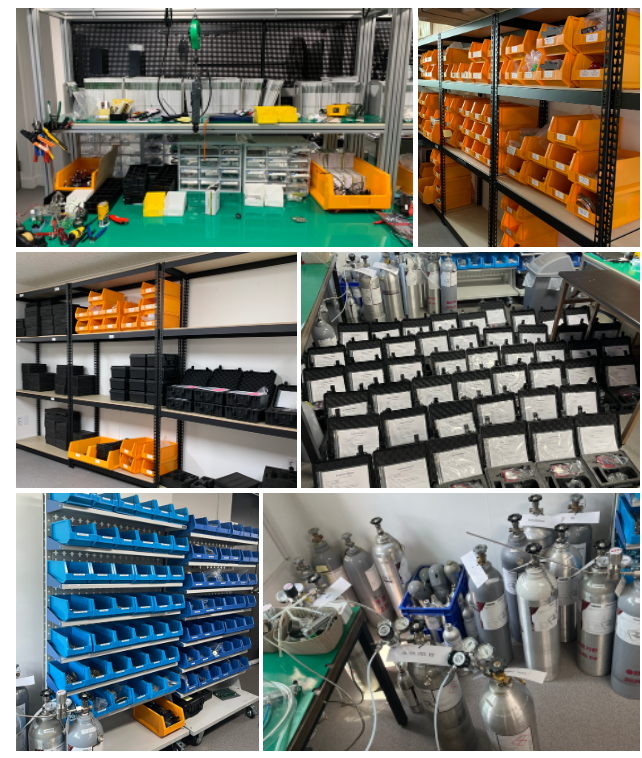

After completing the installation of the FIX800 VOC [preprocessor] and R9600 [data logger + warning light] products, the alarm test and test run product guidance and training were completed, and the installation work was completed. In addition to simple product sales, RS Korea is a company specializing in gas, including self-calibration/domestic repair (A/S)/production/delivery/installation work. We provide 1:1 customized solutions for gas measurement environments based on our experience conducting demonstration / inspection / delivery / repair / installation work in various environments.
Summary of today's blog Measurement purpose: Measurement and data management of residual VOC in clean room Product: WANDI FIX800 / SUPMEA R9600 Gas and measurement range: VOC [volatile organic compounds] 10 ppm Number of people installed: 2 people, 4 hours Other details: - Additional installation work of fixed VOC meter and data logger in newly built clean room - R9600 data logger at entrance / inside clean room Installation of FIX800 - Organizing wires Use of GW waterproof corrugated pipe - Easy power supply using 220V outlet This concludes the FIX800 VOC 10ppm / SUPMEA R9600 installation construction blog. In addition, if you have any inquiries about installation, test run, on-site repair, etc., please contact the number below. ☎031-340-6952 Summary of today's blog Measurement purpose: Measurement of residual VOC in clean room and Data management product: WANDI FIX800 / SUPMEA R9600 Gas and measurement range: VOC [volatile organic compounds] 10ppm Number of installers: 2 people, 4 hours required Other details: - Additional installation work of a fixed VOC meter and data logger in the newly constructed clean room - R9600 data logger at the entrance / FIX800 installation inside the clean room - Organizing wires Use of GW waterproof corrugated pipe - This concludes the FIX800 VOC 10ppm / SUPMEA R9600 installation construction blog, which makes power supply easy by using a 220V outlet. If you have any questions about installation, test runs, on-site repairs, etc., please contact us at the number below. ☎031-340-6952 This was RS Korea ZOE. Thank you.
