FIX800 Fixed Multi-Gas Detectors with 7-Channel LED Display Board — Wastewater Treatment Plant Basement (Gimpo)

Multi-Level Wastewater Treatment Plant — Integrated Gas Monitoring Across Basement Floors

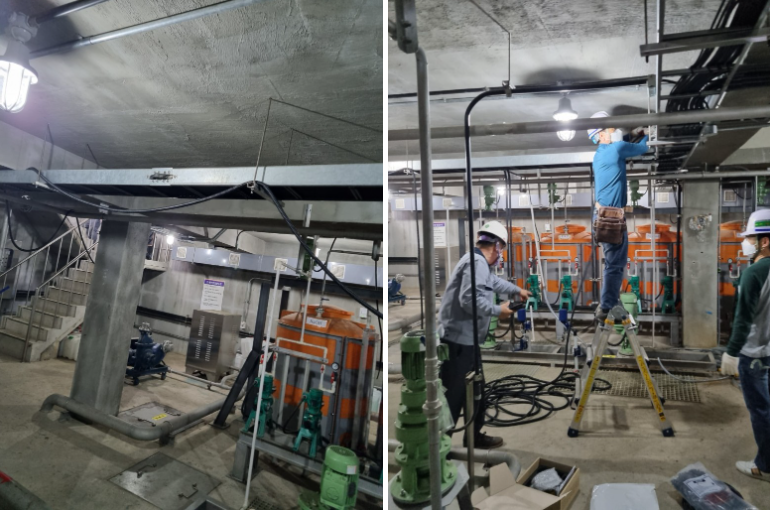

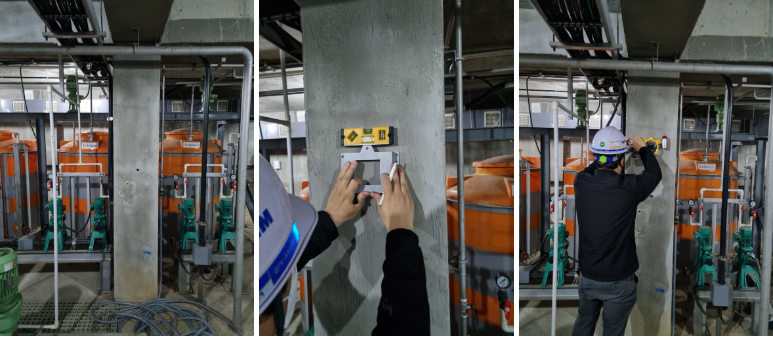

Wastewater treatment plants frequently feature multi-level basement structures, with treatment tanks, pump rooms, and collection pits distributed across separate underground floors. Each level involves distinct process activities and gas generation profiles, requiring independent monitoring points per floor. A centralized display board at the facility entrance — showing all floor readings simultaneously — is essential for pre-entry safety verification. At this facility in Gimpo, Gyeonggi-do, FIX800 fixed gas detectors were installed on both basement level 1 and basement level 2, integrated with a 7-channel FIX-DS LED display board at the entrance to establish a complete multi-floor monitoring system.

Installation Configuration

Why Pre-Delivery Workshop Testing Matters

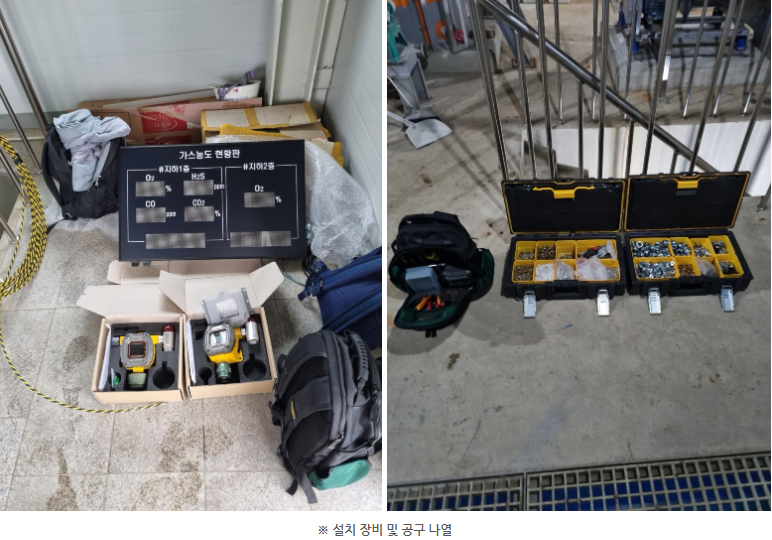

• All detector and display board units are fully powered-on and communication-tested at the workshop before going to site
• Channel assignments, alarm setpoints, and display accuracy are verified in a clean environment

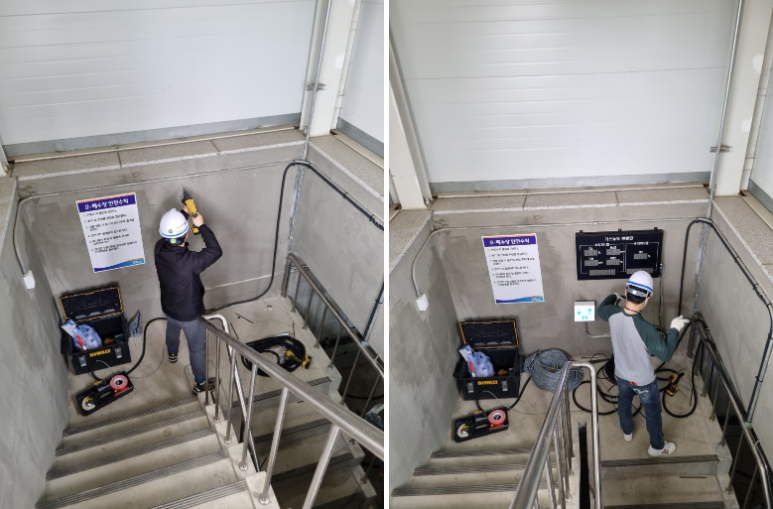

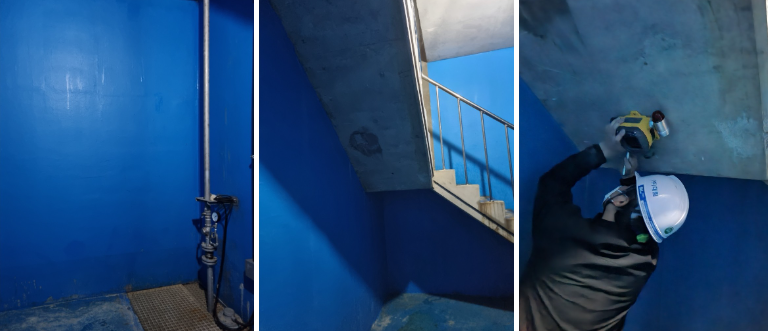

• On-site time is focused entirely on physical installation, wiring, and final confirmation — minimizing time spent in the malodorous, humid confined-space environment
• Customer handover and operator training are completed within the same site visit

Advantages of the 7-Channel Display Board

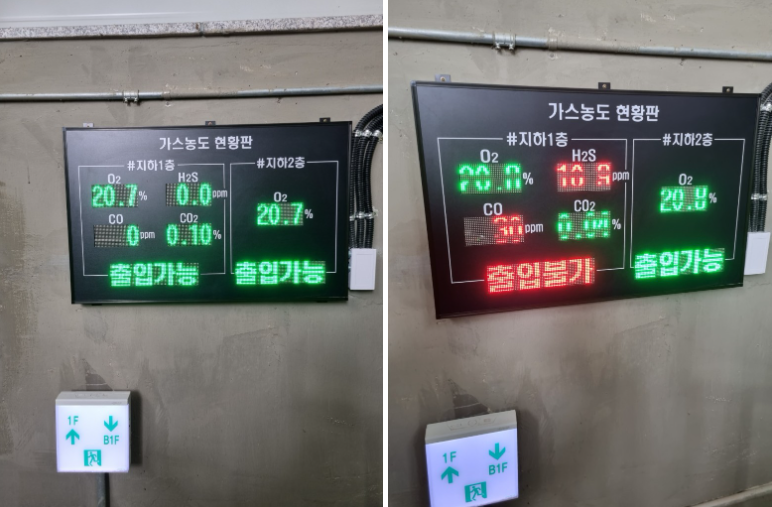

• Basement level 1 (up to 4 channels) and level 2 (up to 4 channels) displayed simultaneously — facility managers can assess each floor's status from outside in a single glance
• Alarm events highlighted per channel — immediate identification of which floor and which gas triggered the alarm
• Pre-entry verification of all floor gas concentrations on a single screen enables rapid and informed entry decisions

Key Gas Management Standards for Wastewater Facilities

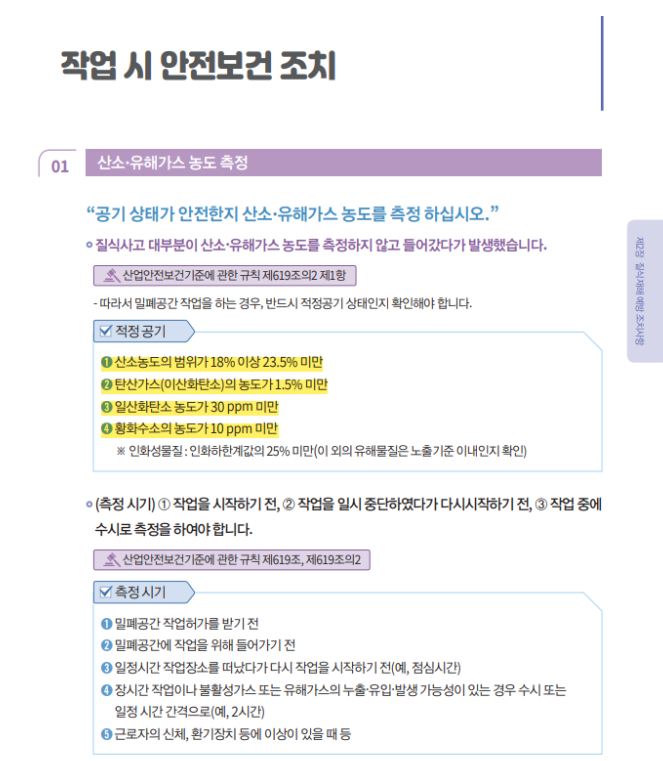

• O₂ (Oxygen): Maintain 18.0–23.5%. Immediate evacuation below 18.0%
• CO (Carbon Monoxide): TWA below 25 ppm
• H₂S (Hydrogen Sulfide): TWA 1 ppm, STEL 5 ppm. Generated abundantly during anaerobic sludge decomposition
• CO₂ (Carbon Dioxide): Headache and respiratory distress above 1.5%. Byproduct of organic matter decomposition in wastewater

Frequently Asked Questions

Why is the display board installed at the entrance rather than inside the facility?

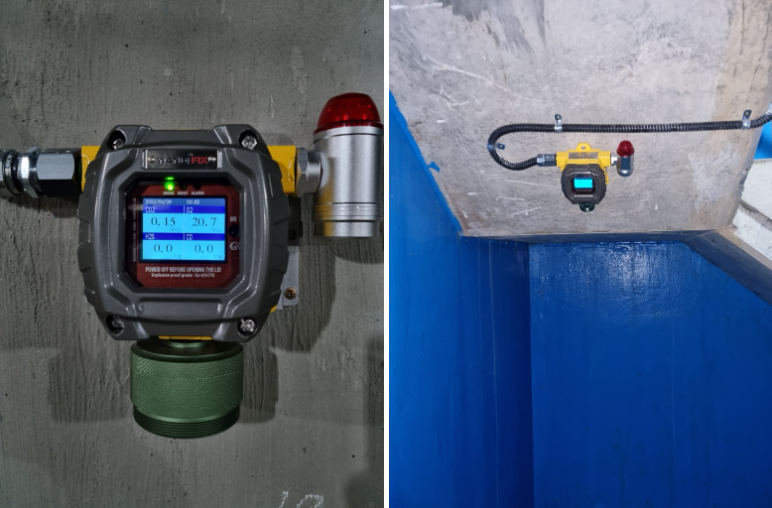

The FIX800 detectors are mounted inside each basement level, making direct visual access impossible from outside. An integrated display board at the entrance allows workers to verify all floor gas concentrations before descending — making it the most effective pre-entry barrier against entering a hazardous atmosphere.

Why is a 7-channel board needed rather than a 4-channel board?

With O₂, CO, H₂S, and CO₂ monitored on two separate basement levels, up to 8 channels of data are generated. The 7-channel configuration reflects the optimized sensor layout for this specific facility. The display board channel count is determined by the number of floors multiplied by the gases monitored per floor.

Is there a distance limitation for RS-485 communication cabling?

RS-485 supports reliable communication up to 1,200 m, more than sufficient for multi-level underground facility wiring. In high electrical-noise environments, a 120 Ω termination resistor at each end of the RS-485 bus is recommended to maintain signal integrity.

Why is pre-delivery workshop testing preferred over on-site testing?

Wastewater treatment facilities are challenging environments for diagnostic work — strong odors, high humidity, and confined spaces make troubleshooting difficult and slow. Testing in the workshop ensures every unit is fully functional before site entry, concentrating on-site time on installation rather than debugging.

Can additional detectors be connected to an existing installation?

Yes. FIX800 units support RS-485 Modbus daisy-chain configuration, allowing additional detectors to be added to an existing communication bus without replacing the display board. This enables phased expansion of safety infrastructure as monitoring requirements grow.
