FIX800 High-Concentration Oxygen Analyzer (O2 0–100%) with Sample Conditioning System (Ulsan)

Today we would like to introduce a delivery case of a high-concentration oxygen analyzer.

"FIX800 O2 (oxygen) 0–100% with basic sample conditioning system"

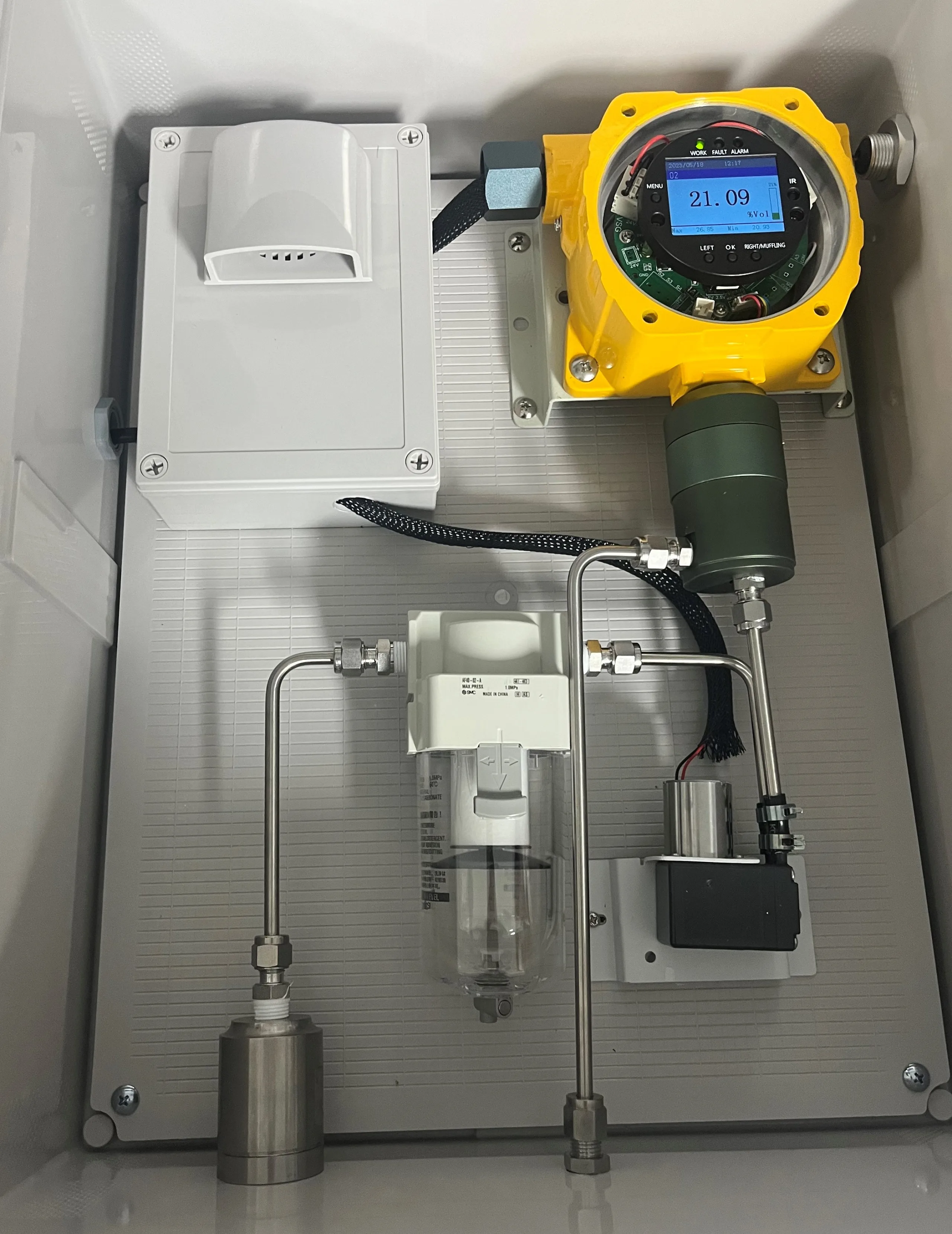

For this delivery, a German ENVITEC oxygen sensor was fitted inside a FIX800 fixed multi-gas detector so that stable, accurate measurement could be achieved even at high oxygen concentrations.

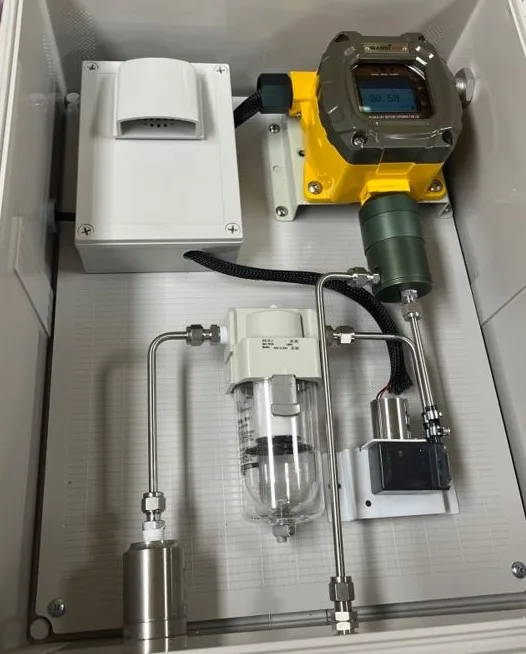

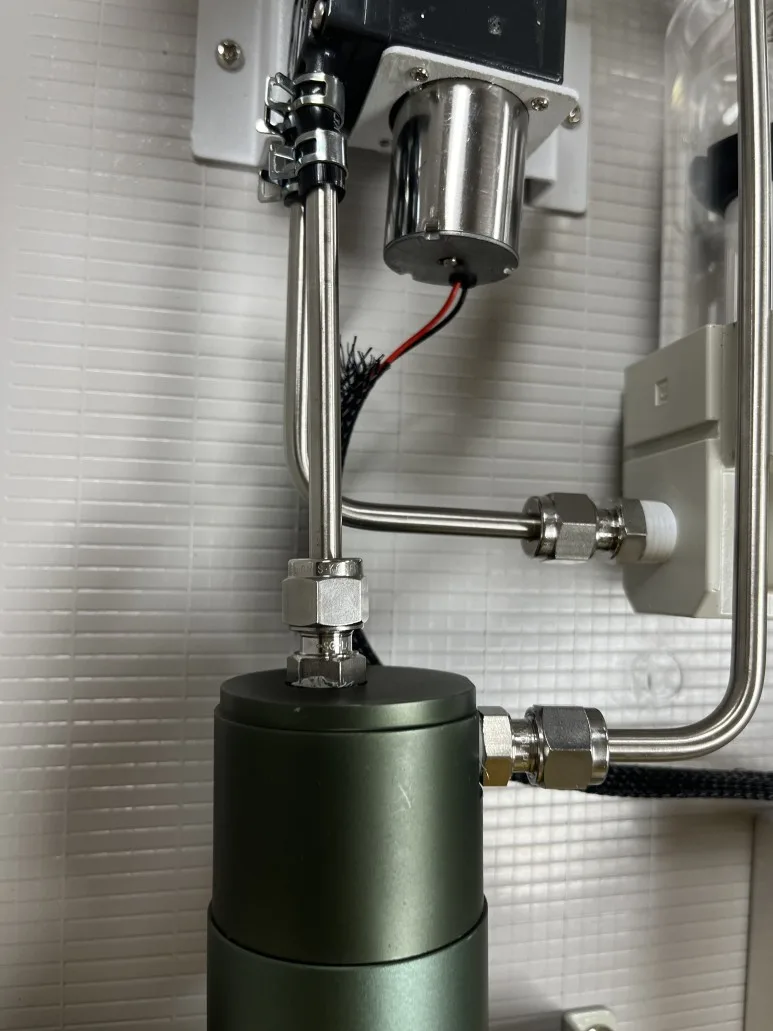

The accompanying basic sample conditioning system is equipped with a dust filter and a separator that remove particulates and moisture. A diaphragm pump draws in and measures the gas at a rate of about 1.2 L per minute.

The basic conditioning system cannot sustain continuous measurement for more than about 5 minutes under 100% saturated steam conditions.

The basic conditioning system is used in situations such as:

- When diffusion-type gas cannot be measured

- When the gas must be drawn in by suction for measurement

- When the measurement environment is at a relative humidity of roughly 50–70% RH

- When the sampled gas must be recirculated rather than vented to the atmosphere

For these and other reasons, the conditioning system is supplied together with the analyzer.

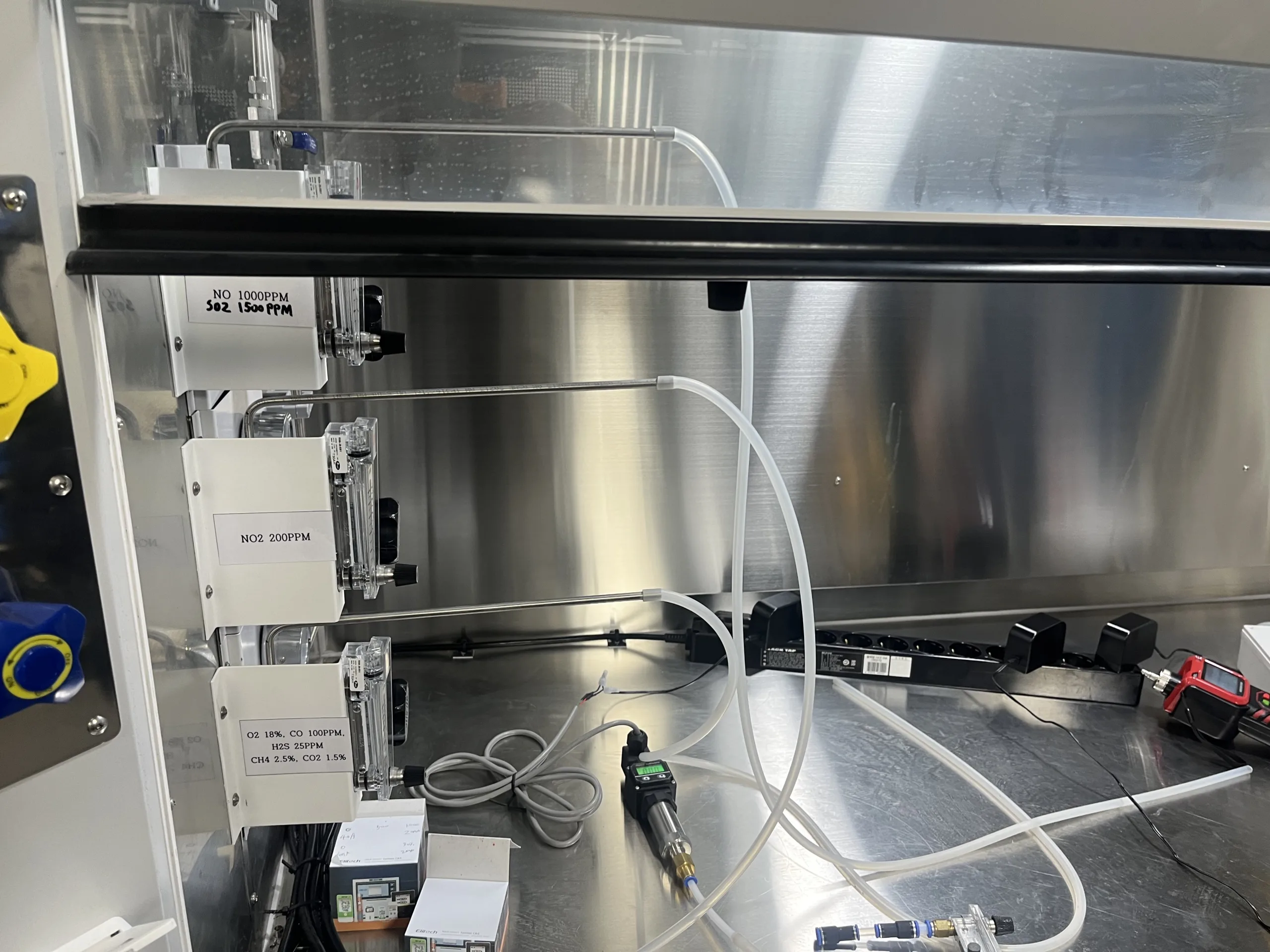

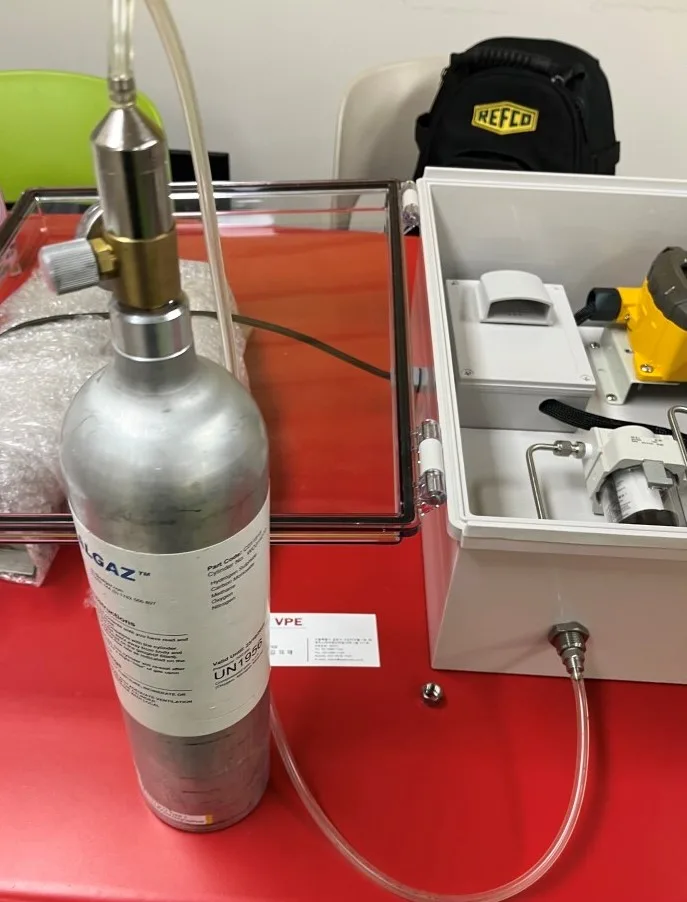

Each unit is given a final check with standard calibration gas before delivery. Even in cases where standard gas is not available, a final check is still carried out before the unit ships, as shown below.

In addition to this high-concentration installed-type oxygen (100%) analyzer, we can also supply equipment capable of high-concentration measurement of inert gases such as methane, carbon dioxide, helium, and argon.

If you have any questions about gas measurement equipment, please feel free to contact us.

Frequently Asked Questions (FAQ)

What oxygen analyzer was installed in this case?

It is a FIX800 fixed multi-gas detector fitted with a German ENVITEC oxygen sensor, configured as a FIX800 O2 (oxygen) 0–100% high-concentration analyzer.

What does the sample conditioning system do?

It is equipped with a dust filter and a separator that remove particulates and moisture, while a diaphragm pump draws in and measures the gas at a rate of about 1.2 L per minute.

When is the basic conditioning system needed?

It is used when diffusion sampling is not possible, when the gas must be drawn in for measurement, when the relative humidity of the environment is around 50–70% RH, or when the sampled gas must be recirculated rather than vented to the atmosphere. However, continuous measurement for more than 5 minutes is not possible under 100% saturated steam conditions.

What verification process does the equipment go through before delivery?

It undergoes a final check using standard calibration gas before delivery, and even when standard gas cannot be prepared, a final check is still carried out before shipment.

Can gases other than oxygen also be measured at high concentrations?

Yes. Equipment for high-concentration measurement of inert gases such as methane, carbon dioxide, helium, and argon can also be supplied.
