What Is Fluorine (F2)? — The Most Powerful Oxidizing Gas on Earth
Fluorine (F₂) is a pale-yellow gas with the highest electronegativity of all elements, making it the most powerful oxidizer on Earth. It reacts instantly with almost every substance and corrodes even glass, ceramics, and some precious metals. It is essential in semiconductor etching, fluorocompound synthesis, uranium enrichment (UF₆ production), and refrigerant manufacturing. The NIOSH IDLH is 25 ppm, and the OSHA PEL (8-hour average) is just 0.1 ppm. Fluorine immediately corrodes skin, lungs, and mucous membranes, causing chemical burns within minutes of inhalation.
💡 Key Summary
Fluorine (F₂) is so toxic that a permissible limit applies even at the ultra-low concentration of 0.1 ppm. The WANDI EDW500 (IECEx international explosion-proof certified) simultaneously detects up to 5 gases including F₂, protecting semiconductor and chemical plant workers in real time.
Health Effects of Fluorine (F2)
| Exposure Concentration (ppm) | Exposure Time | Health Effect | Risk Level |
|---|---|---|---|
| 0.1 | 8 hours | OSHA PEL limit — mild mucous irritation | ⚠️ Caution |
| 1~3 | Short-term | Severe eye/nose/throat irritation, coughing, chest pain | 🟠 Danger |
| 10 | Short-term | Pulmonary edema, chemical pneumonia risk | 🔴 Immediate danger |
| 25 | Immediately | IDLH — immediate threat to life | 💀 Fatal |
| Skin contact | Immediately | Chemical burns, tissue necrosis | 💀 Fatal |
Source: NIOSH Pocket Guide to Chemical Hazards (2024), OSHA PEL standard, CDC ATSDR
Real Fluorine Gas Accident Cases
🇺🇸 Fluorine Leak at a U.S. Semiconductor Plant (2018, Texas)
At a semiconductor manufacturing facility in Texas, a malfunction in the fluorine gas supply valve on an etching process line caused F₂ to leak. Four employees received medical treatment for respiratory irritation, and part of the plant suspended operations for several days. The accident investigation confirmed that the facility's F₂ detector was not functioning. (Source: U.S. Occupational Safety and Health Administration, Inspection Report 2018)
🇰🇷 Fluorine Gas Leak at a Domestic Semiconductor Materials Plant (2020, Hwaseong, Gyeonggi)
At a semiconductor materials manufacturing plant in Hwaseong, Gyeonggi Province, a broken fluorine gas pipe joint leaked F₂ into the workroom. Three workers on duty evacuated with eye/throat irritation and coughing, and one was hospitalized for treatment. (Source: Korea MoEL industrial accident statistics, 2020 chemical incident casebook)
Industrial Sites Where Fluorine (F2) Is Mainly Used
- Semiconductor etching processes — using NF₃ and F₂ gases
- Uranium enrichment facilities — UF₆ (uranium hexafluoride) production
- Fluorocompound synthesis plants — manufacturing PTFE (Teflon), etc.
- Lithium-ion battery electrolyte production
- Specialty glass and optical material manufacturing

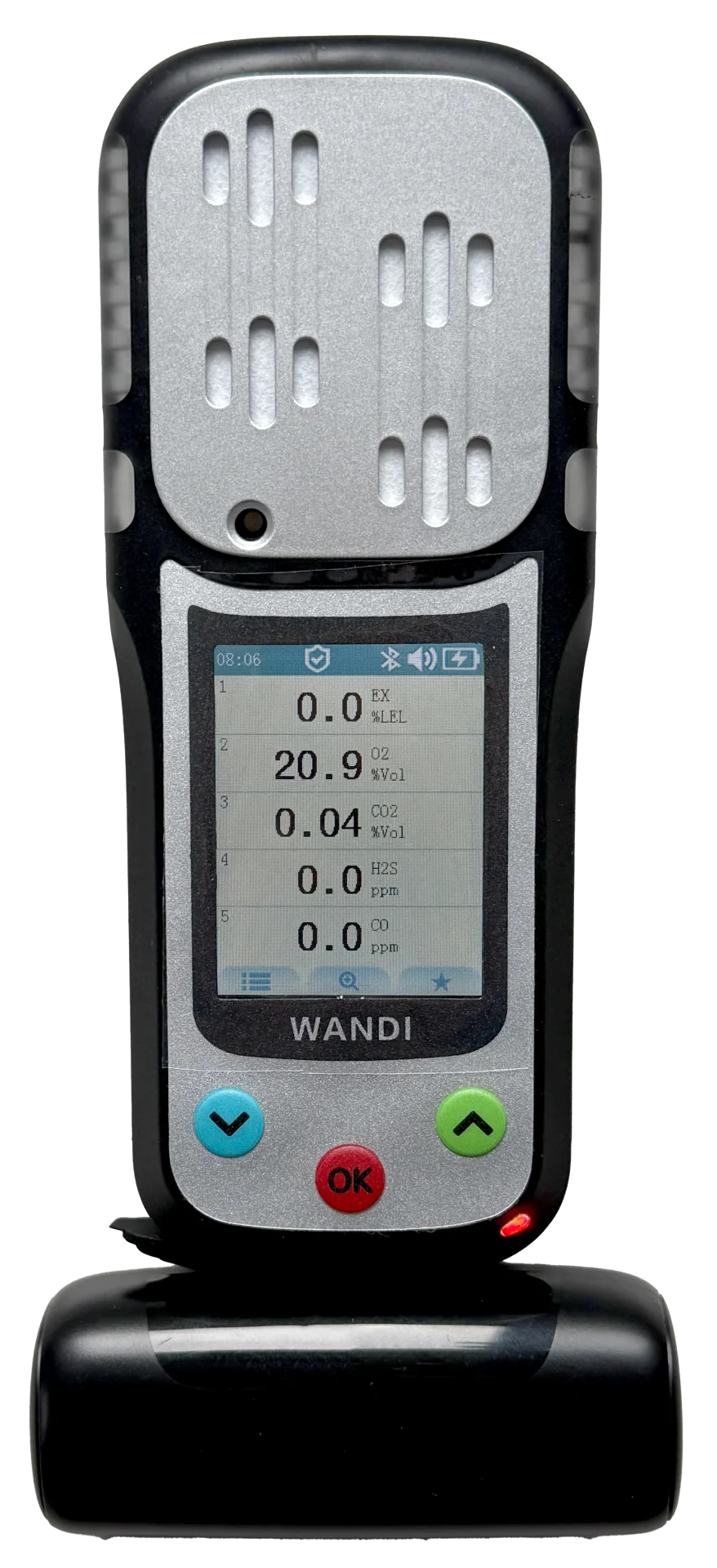

WANDI EDW500 — IECEx-Certified 5-Gas Portable Multi-Gas Detector
The WANDI EDW500 is the only domestic IECEx-certified portable multi-gas detector, holding IECEx TPS 25.0057X (TÜV SÜD certified). With the explosion-proof marking Ex da ia IIC T4 Ga (Zone 0, EPL Ga), it can be used safely even in the special-gas zones of semiconductor plants.
| Item | EDW500 Specification |
|---|---|
| Simultaneous gases | Up to 5 (F₂, HF, O₂, EX, H₂S, etc. combinable) |
| International explosion-proof cert. | IECEx TPS 25.0057X / KCs explosion-proof certification |
| Explosion-proof rating | Ex da ia IIC T4 Ga (Zone 0) |
| Data integration | Cloud real-time monitoring, GPS location tracking |
| Alarm | Triple alarm: sound, vibration, LED |
What If EDW500 Had Been Used? — Fluorine Accident Prevention Scenario
- 1Instant ultra-low detection: A stage-1 alarm the moment F₂ reaches 0.1 ppm → evacuate before skin/lung burns occur
- 2Triple-alarm immediate evacuation: Sound, vibration, and flashing LED alarms alert the worker at once → evacuation within 30 seconds on average
- 3Cloud location/concentration transmission: Real-time alerts to the manager's PC/smartphone → enabling an emergency shutdown order for the entire plant line
- 4Exposure history retention: Exposure data saved automatically → providing Serious Accidents Punishment Act compliance evidence and a basis for medical diagnosis
📋 Relevant Regulations
Fluorine (F₂) is designated a hazardous chemical under the Chemicals Control Act, and under Article 38 (safety measures) of the Occupational Safety and Health Act, gas concentration must be measured before F₂ handling work. Under the 2024 revised enforcement rules, the use of detectors with data-storage capability is recommended.

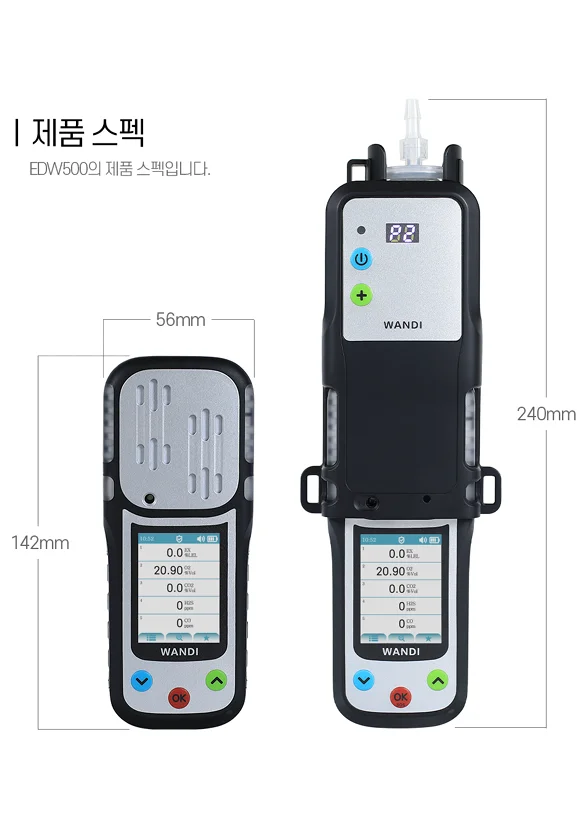

A Closer Look at the WANDI EDW500
Below are real photos of the WANDI EDW500 portable multi-gas detector and its use on site.
