Hazardous Gas Detector Installation at Aeration Tank, Anaerobic Digester, and Sludge Treatment Process

Aeration Tank, Anaerobic Digester, and Sludge Treatment Process — Hazardous Gas Detector Installation

The aeration tank is a key component in wastewater treatment, responsible for purifying sewage — but decomposing wastewater carries significant potential for generating methane, hydrogen sulfide, and ammonia, leading to its classification as a confined space that should always have a gas detector and alarm system installed for continuous concentration monitoring.

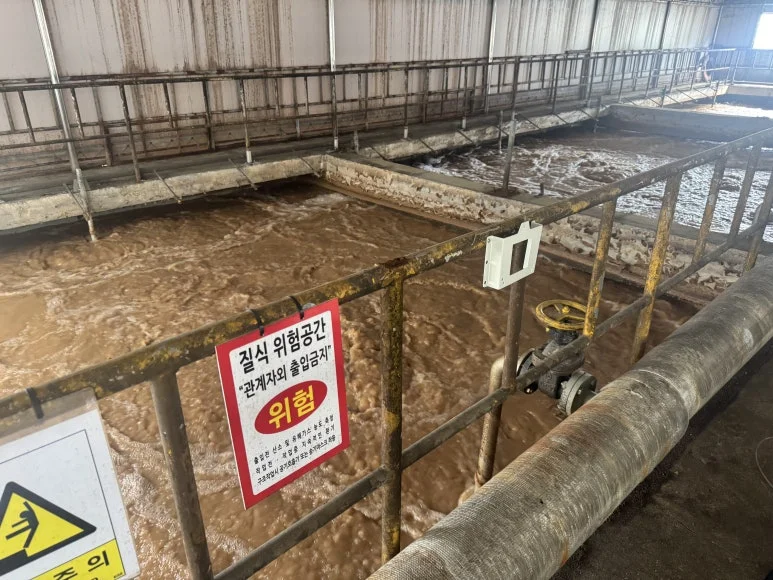

At this particular site, the aeration tank had some level of ventilation, but hydrogen sulfide readings were high, making continuous gas concentration monitoring necessary.

FIX800 Hazardous Gas Detector Installation

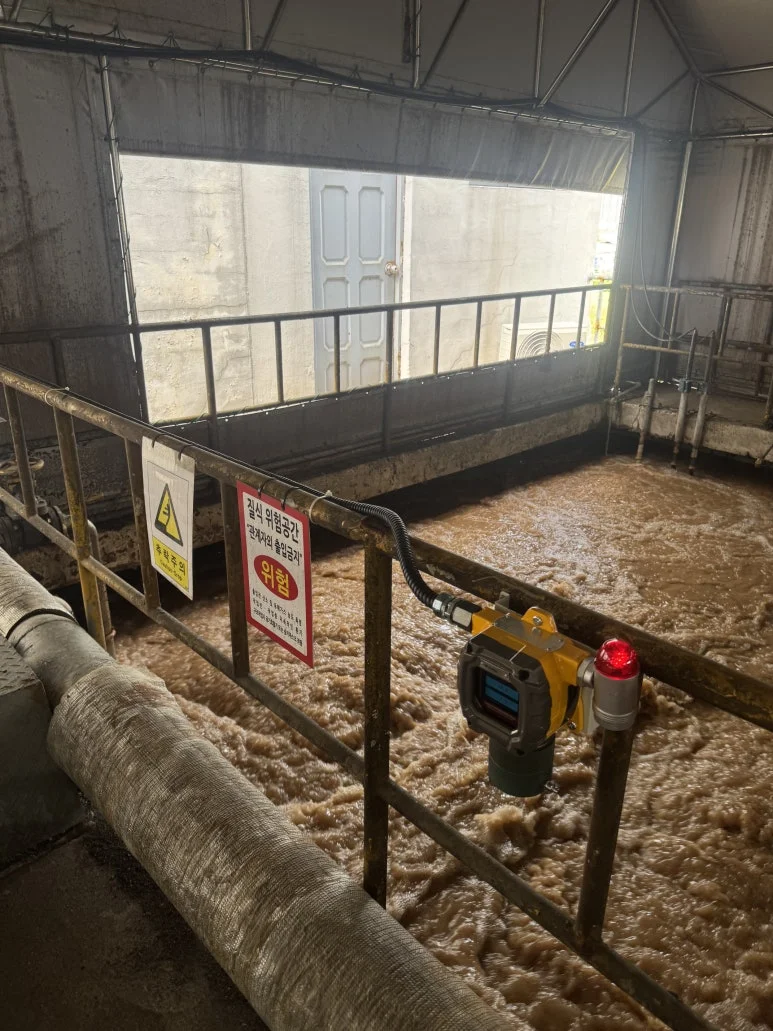

A FIX800 fixed hazardous gas detector was installed, simultaneously measuring oxygen, hydrogen sulfide, carbon monoxide, and combustible gas. In line with Korea's Occupational Safety and Health Act, the alarm activates automatically whenever oxygen levels drop or a hazardous gas is detected, and the unit runs on continuous power supply for reliable 365-day operation.

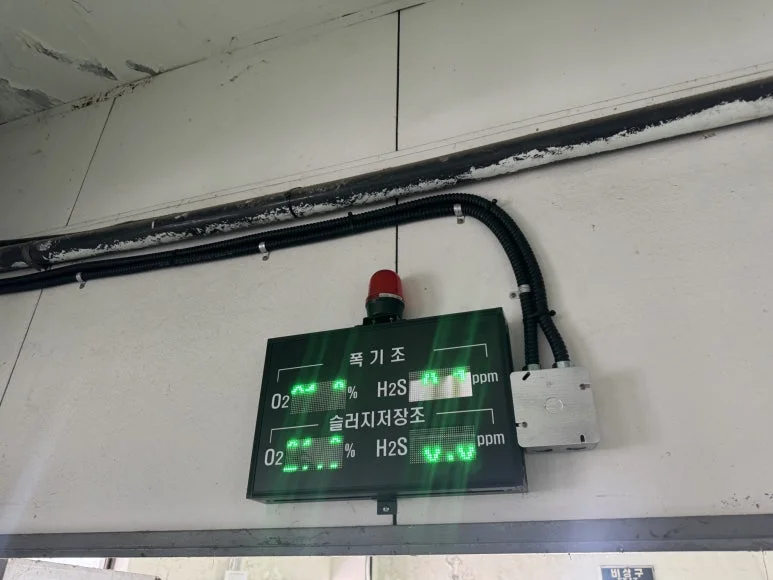

Detectors were installed at a total of two gas-prone locations, with a gas concentration display board placed near the workers' office so that hazardous gas levels can be checked at a glance.

Hazard Characteristics by Process Stage

• Aeration tank: Core purification process for decomposing organic matter in wastewater — anaerobic conditions can generate methane, H₂S, and ammonia despite the aerobic treatment process
• Anaerobic digester: Specifically designed to operate under oxygen-free conditions for organic matter breakdown — generates significant methane and H₂S as primary byproducts
• Grit chamber: Settling stage for incoming wastewater solids, where organic decomposition can also generate hazardous gases
• Sludge thickener: Concentrates sludge from earlier treatment stages, increasing the density of decomposing organic matter and the associated gas-generation risk
• Sludge storage tank and sludge treatment process: Concentrated organic matter handling stages with elevated risk of multiple hazardous gas generation
• Microbial decomposition in all of these spaces generates a variety of toxic gases, so at minimum, oxygen and hydrogen sulfide should always be measured and managed
• All of these process areas are classified as confined spaces under Korea's Occupational Safety and Health Standards, requiring continuous gas monitoring

Confined Space Entry Protocol

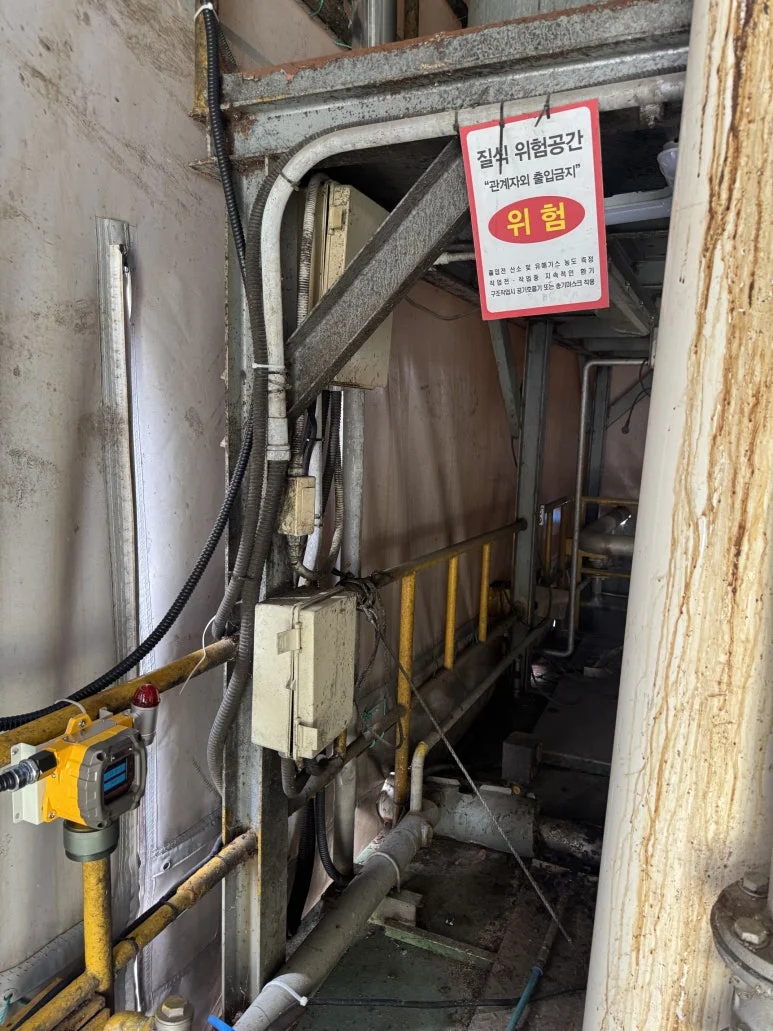

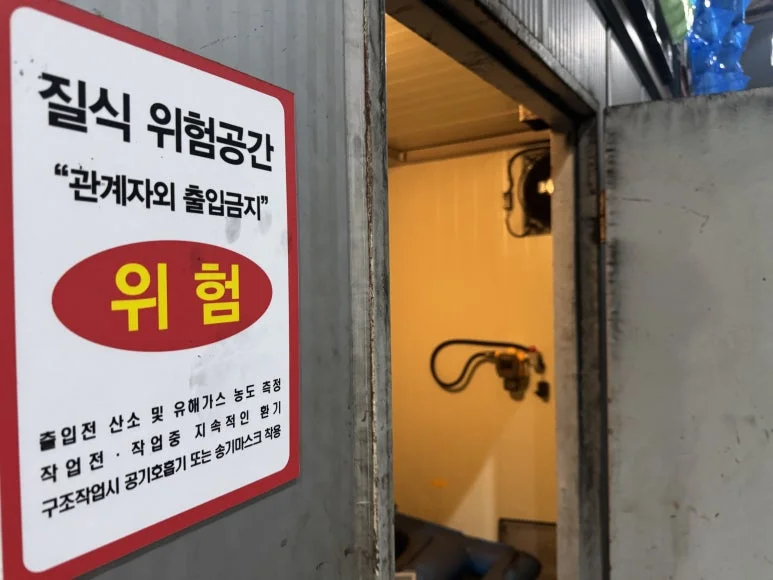

If a workspace is marked with signage such as "Asphyxiation Risk Area" or "Authorized Personnel Only," workers must check the internal air condition before entering, and gas levels must continue to be measured throughout the work. Always carry a portable gas detector when performing confined-space work and follow safe work procedures.

Installation Specifications

Why Continuous Monitoring Is Essential

• Gas detectors and alarm systems must be installed to enable continuous gas concentration monitoring across these process areas
• The combination of decomposing wastewater and limited ventilation creates persistent hazardous gas generation potential
• Fixed detection with alarm capability ensures workers are alerted to dangerous conditions before entry or during ongoing work

Frequently Asked Questions

Why is the aeration tank classified as a confined space despite being an aerobic process?

While the aeration process itself introduces oxygen, localized anaerobic pockets within the wastewater and sludge can still generate methane, H₂S, and ammonia. Combined with limited ventilation in the tank structure, this creates confined space conditions requiring continuous monitoring.

What makes the anaerobic digester particularly hazardous?

Anaerobic digesters are specifically designed to exclude oxygen for organic matter breakdown, making them a primary generation point for methane and hydrogen sulfide — both significant safety hazards requiring dedicated gas monitoring.

Why does sludge treatment require gas monitoring alongside the tanks?

Sludge represents concentrated organic matter from the treatment process, carrying elevated risk of generating multiple hazardous gases simultaneously as it continues to decompose during handling and processing.

How can gas detector installation be arranged for similar wastewater treatment processes?

WANDI Korea provides installation services across the full range of wastewater treatment process areas, with site assessment to determine optimal detector placement at each specific process stage.
