Dry Ice Container CO₂ Asphyxiation Prevention with Real-Time FIX800 and FIX-DS Safety Management

Dry Ice Container CO₂ Asphyxiation Prevention — Real-Time Safety Management with FIX800 and FIX-DS

Dry ice is widely used in storage and logistics operations, but as it sublimates, it releases carbon dioxide (CO₂). In confined spaces with limited ventilation — such as freezer containers — CO₂ concentration can rise rapidly, exposing workers to asphyxiation risk including dizziness, respiratory distress, and loss of consciousness.

Checking with a portable gas detector only once before starting work has real limitations: it is difficult to track CO₂ changes in real time while work is underway, difficult to measure accurately deep inside a container that is fully loaded with dry ice, and the detector's warm-up time plus repeated measurements can delay the work itself.

To address these limitations, a FIX800 fixed CO₂ detector was installed to continuously monitor the container interior, paired with a FIX-DS gas concentration display board outside so the current reading can be checked at a glance before entry.

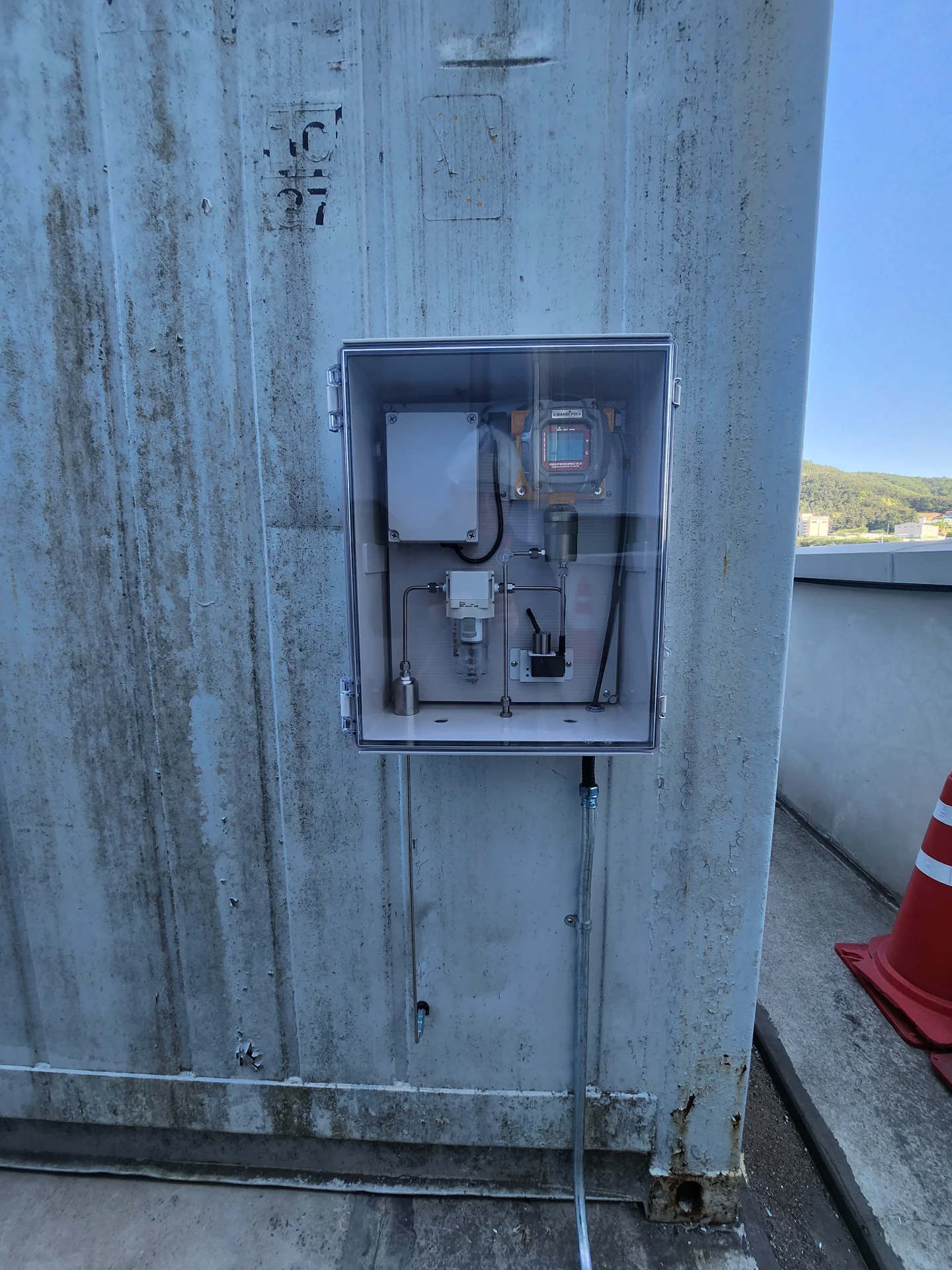

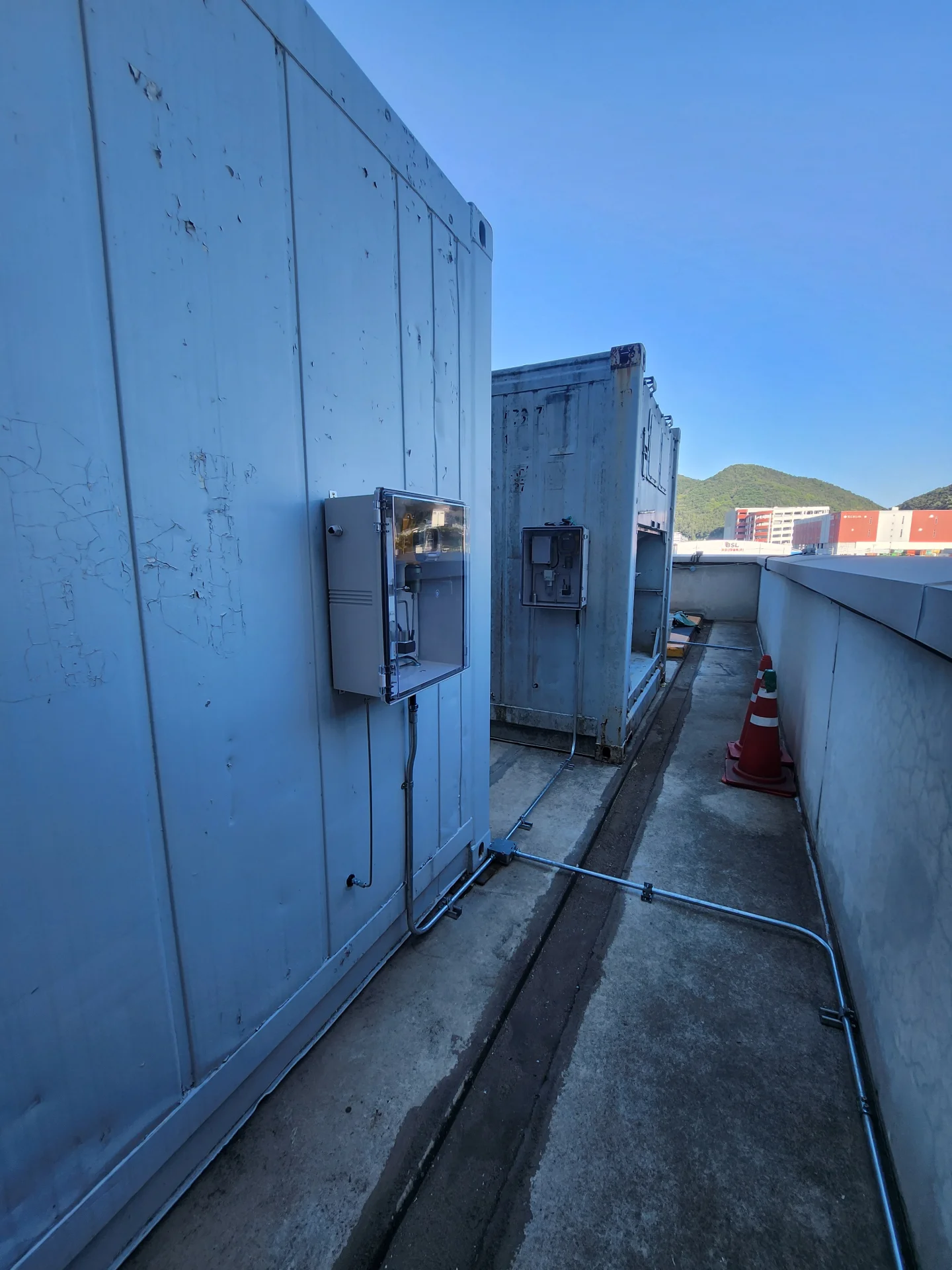

In this installation, the FIX800 CO₂ detector itself was mounted on the outside of the freezer container, with a pre-treatment sampling unit added to draw gas from inside the container to the sensor via suction, connected through steel piping.

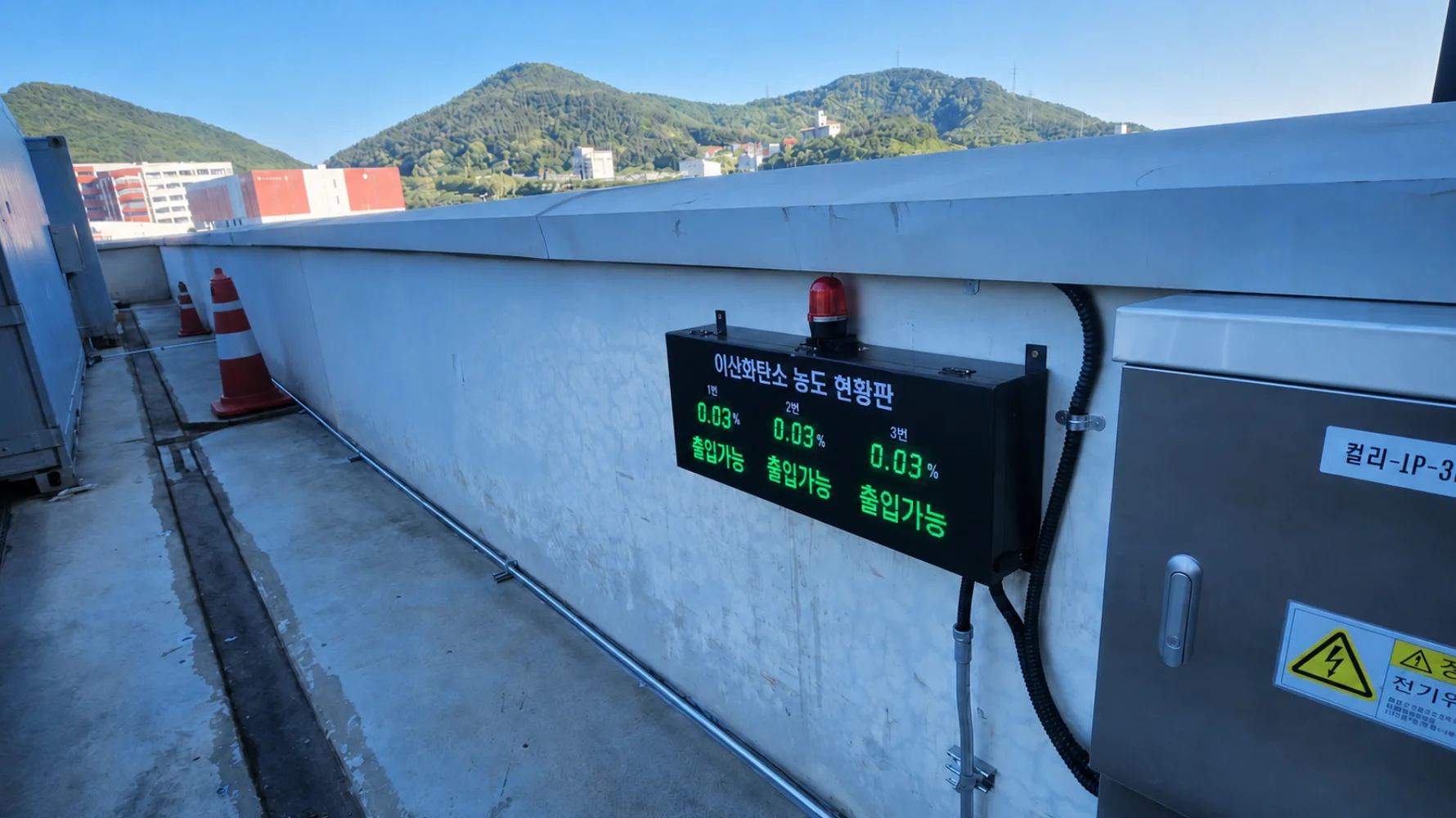

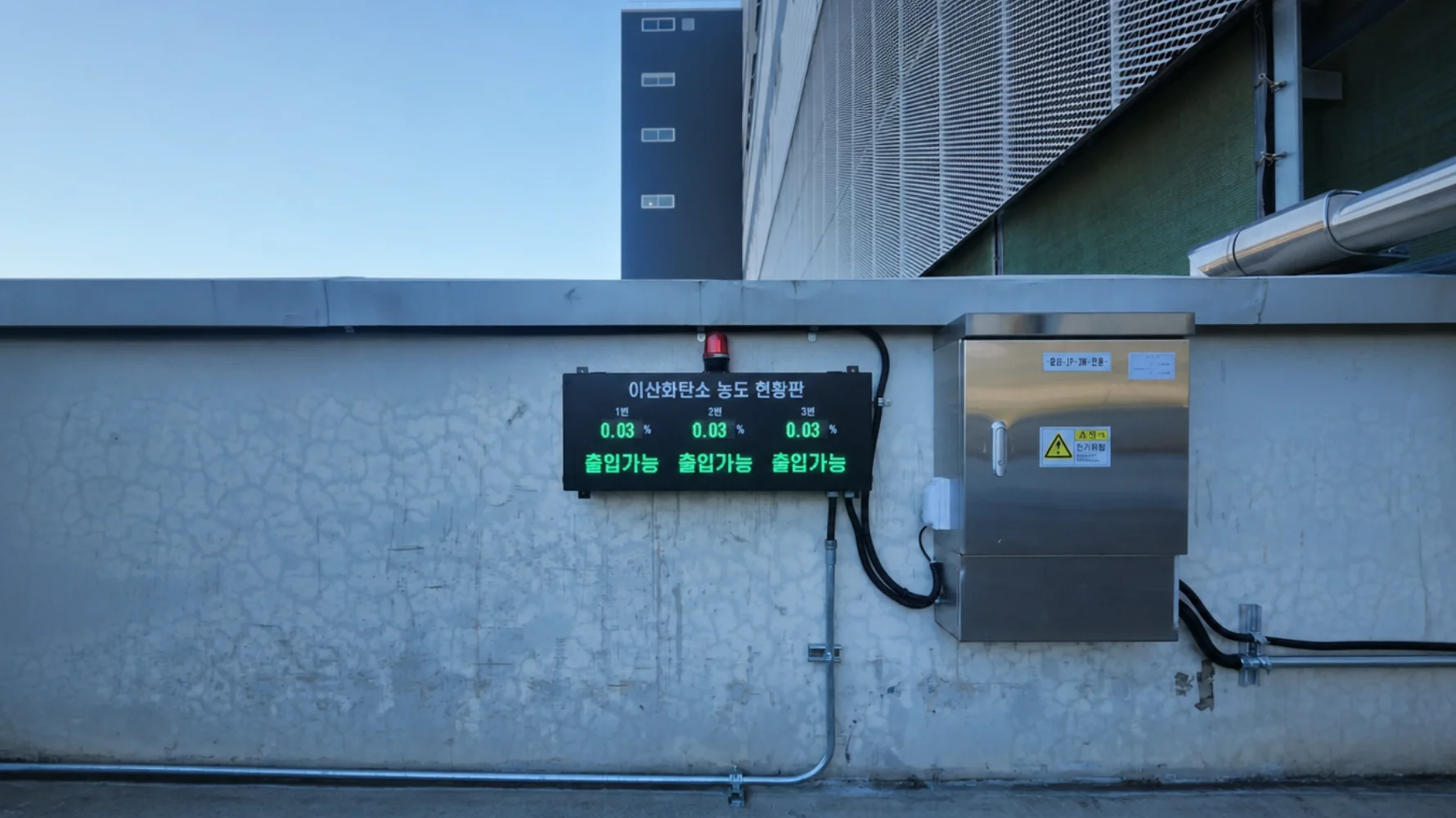

A gas concentration display board was installed so that CO₂ levels across three separate dry ice freezer warehouses could be checked from outside before starting work. The display board was built in an outdoor, waterproof design and shows clear "Entry Permitted / Entry Prohibited" messaging so workers can proceed safely.

Workers can check whether entry is safe before opening the container and respond immediately if a dangerous concentration is detected.

Freezer warehouse environments also require attention to moisture and condensation, equipment damage, and wiring damage — applying moisture-removal measures, protective covers, and steel-pipe wiring together results in a more stable and reliable safety monitoring system.

Upgrading a dry ice container's safety system is not simply an equipment installation — it is an essential safety investment that prevents worker asphyxiation accidents and strengthens confined-space safety measures required under Korea's Occupational Safety and Health Act.

Key System Components

Installation Specifications

Why Real-Time Monitoring Is Necessary, Beyond Portable Spot-Checks

• Dry ice sublimation rate and resulting CO₂ accumulation can change rapidly depending on quantity, ambient temperature, and ventilation status
• Traditional portable gas detector spot-checks before entry provide only a single point-in-time reading, missing conditions that develop during the work period
• FIX800 fixed installation combined with FIX-DS display board provides continuous real-time CO₂ monitoring, with immediate visual alarm if concentrations rise during occupancy
• This continuous approach is particularly important in freezer containers where ventilation is inherently limited by the cold storage function itself

Frequently Asked Questions

Why does dry ice generate CO₂ asphyxiation risk?

Dry ice is solid CO₂. As it sublimates from solid directly to gas, it releases significant volumes of carbon dioxide. In confined, poorly ventilated spaces like freezer containers, this released CO₂ can accumulate rapidly, displacing oxygen and creating asphyxiation hazards.

Why is real-time monitoring preferred over periodic portable detector checks for this application?

Portable detector checks provide only a snapshot at the time of measurement. Since dry ice sublimation and resulting CO₂ levels can change continuously based on quantity and ambient conditions, real-time fixed monitoring with FIX800 and FIX-DS provides continuous protection throughout the entire time workers may be present.

Why are freezer containers particularly susceptible to CO₂ accumulation risk?

Freezer containers are designed with minimal ventilation to maintain cold temperatures, which is exactly the condition that allows CO₂ from dry ice sublimation to accumulate to dangerous concentrations rapidly.

How can FIX800/FIX-DS systems be installed for similar dry ice storage applications?

WANDI Korea provides installation services for dry ice storage and logistics facility CO₂ monitoring systems, including site assessment for optimal detector and display board placement.
